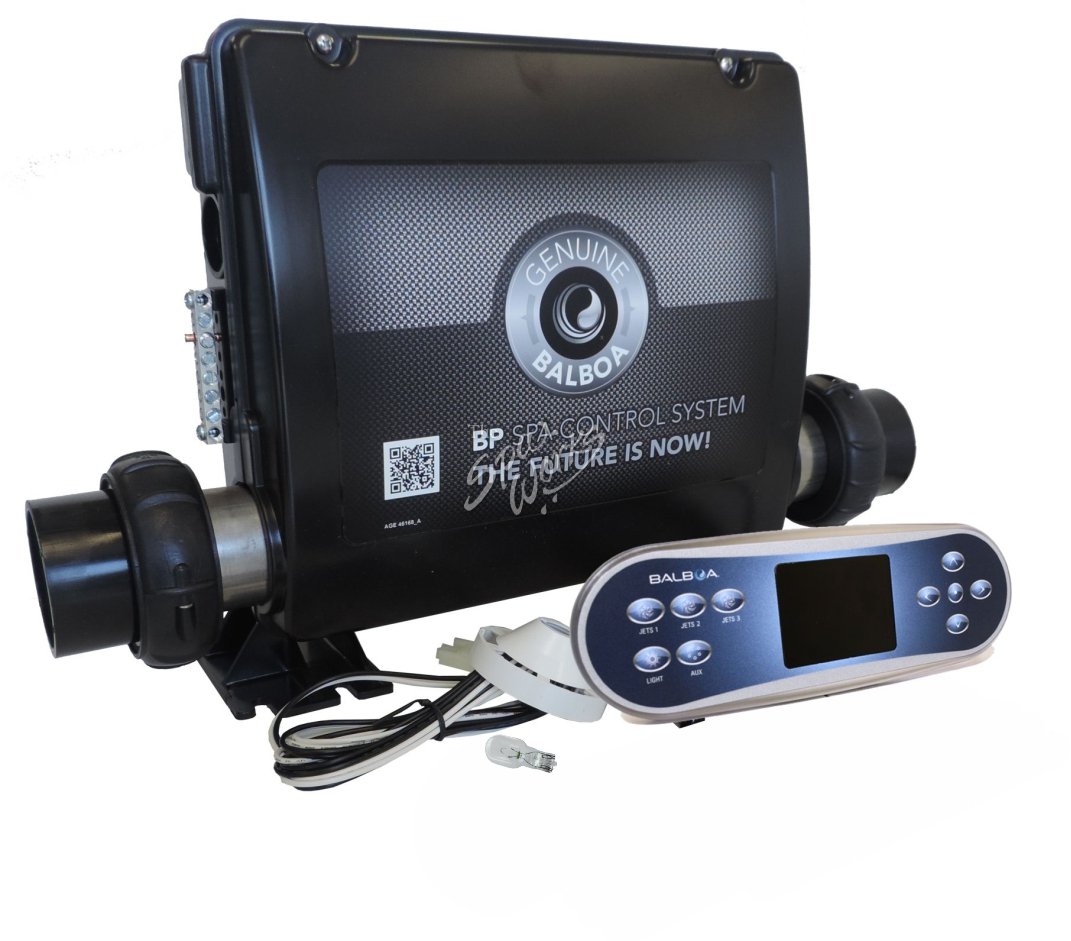

BALBOA BP7 SERIES RETRO FIT KIT WITH 4.0KW FIXED HEATER AND TP700

Balboa Series BP7 Convertible Electronic Control System. System Comes With Control Box, With PCB And Heater, A TP700 Spaside Controller, Adapter Plate To Cover A Larger Hole And Accessory Kit.

Features:

                M8 Technology.

                Heater: 1.0/4.0KW

                12V Light Assembly.

                All Circuits Available 115 Or 230VAC.

                Freeze Protection.

                Owners Manual.

                US And Canada UL Recognized.

System Can Operate In Many Configurations. Two 2 Speed Pumps, One 1 Speed Pump, 1 Speed Blower, And A Circulation Pump.

System Specifications:

System dimensions: 15 Inches Wide X 12 Inches High X 6 Inches Deep

                Weight: 15LB

                Topside Dimensions: 10 Inches Long X 3.5 Inches Wide

Required Flow Rate Of 25GPM Through The Heater.

Electrical output specifications (Max Amps)

                Pump(s)                               12Amps

                Blower                                 12 Amps

                Ozone                                 1 Amp

                Circulation Pump                4 Amps

                Light                                   2 Amps

                Heater                                 23 Amps
